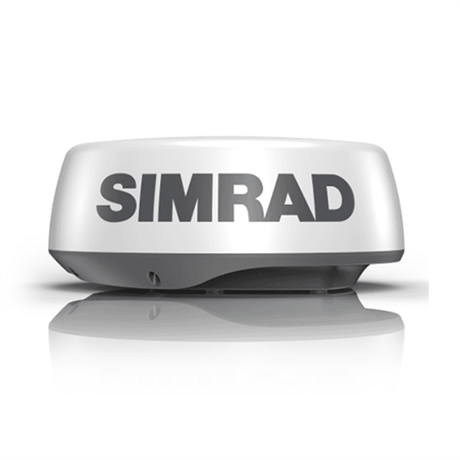

Simrad HALO20 Radar - 000-14537-001
HALO20 radar is a cost-effective solution for boaters to increase situational awareness and collision avoidance, detecting collision hazards and other targets nearby and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for more budget-conscious buyers with smaller sportfishing vessels and dayboats. With its small footprint and low profile, HALO20 is the perfect radar solution for more budget-conscious buyers with smaller sportfishing vessels and dayboats. HALO20 radar also delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Boaters can monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give boaters a clear and current picture of their surroundings.
Key Features
6W Pulse Compression
Radar use modes (no bird mode)
Radiation safe*
24nm range
24rpm antenna rotation
Low Profile & Light weight 5.9kg
Unrivalled Short-Range
InstantOn™
MARPA Target tracking
Low power consumption
Blanking sectors
Guard zones
LED Lights
Blanking sectors
Guard zones
Förpackningen innehåller:
HALO20 Radar
Radarkabel 10m
HALO Ethernetkabel 1,5m
Specifikationer:
| Compliance | CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G |
| Environmental | IEC60945 : 2002 |
| Operating Temperature | -25° to +55°C (-13° to +130°F) |
| Relative humidity | +35° C (95° F), 95% RH |
| Waterproof | IPX6 |
| Max relative wind velocity | 51 m/sec (100 Knots) |
Power & Dimensions
| Power consumption (with 10m cable) | Operating: 17.to 20W at 13.8 V |
| Standby | 3.9 W (Typ.) at 13.8 V DC ~ 170 mA |
| DC input (at radar end of cable) | 9 V to 31.2 V DC (12/24 V systems) |
| Reverse polarity protection | Yes |
| Minimum startup voltage | 10.75 V DC |
| Transmitter source (pre-heating time) | No magnetron – Instant On |
| Outside dimensions | Ø Diameter 510 mm (20”), Height 223 mm (8.8”) |
| Scanner weight (no cable) | 5.9kg (13 lbs) |
Radar and Antenna parameters
| Radar ranges | 100 m (328 ft) to 24nm with 17 range settings, (nm/sm/km) |
| Rotation (mode dependent) | 20-24rpm |
| Transmitter frequency | X-band - 9.4 to 9.5 GHz |
| Transmitter source (warm-up time) | No Magnetron – all solid state. Instant On™ |
| Plane of polarization | Horizontal Polarization |
| Transmitter peak power output | 6W |
| Minimum range | 6 m (19.7 ft) |
| Sweep repetition frequency | 700-2400 Hz (mode dependent) |
| Pulse length | 0.04 - 64 usec |
| Sweep bandwidth | 48 MHz max |
| Horizontal beam width (Tx and Rx antenna) | 4.9° nominal (-3 dB width) |
| Target Seperation Control | Not available |
| Vertical beam width (Tx and Rx antenna) | 25° (-3B width nominal) |
| Side lobe level (Tx and Rx antenna) | Below -18 dB (within ±10°);Below -24 dB (outside ±10°) |
| Noise figure | Less than 5 dB nominal |
Communications/Cabling
| Protocol | Ethernet 100 Base T |
| Maximum inter connecting cable length | 30 m (98.5 ft) – available as option, use NEP-2 for longer cable runs |
