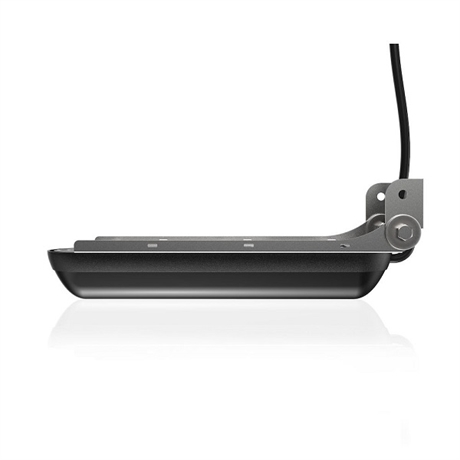

Active Imaging 2-i-1 Ekolodsgivare 9-pin - 000-14490-001
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 2-in-1 sonar featuring SideScan and DownScan. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Active Imaging 2-in-1 sonar is perfect for use with a separate traditional sonar transducer.
- Perfect for use with a separate traditional sonar transducer
- More refined detail and better range than any other imaging technology
- Supports SideScan and DownScan (455/800kHz)
- Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and Simrad NSS evo3 and GO series displays
Passar följande enheter:
Lowrance HDS Carbon
Lowrance HDS Live
Lowrance Elite Ti2
Simrad NSS evo3
Simrad GO XSE
Simrad GO XSR
B&G Vulcan
B&G Vulcan R
Teknisk data:
Environmental
Operating temperature | -15°C to +55°C (+5°F to +131°F) |
Storage temperature | -30°C to +70°C (-22°F to +158°F) |
Physical
Cable length | 7.6 m (25 ft) |
Mounting options | Transom, flush step, and jackplate mounting |
Connector | 9 pin |
Transducer
Output | SideScan imaging, DownScan imaging and temperature |
Frequency | 455 kHz and 800 kHz |
Max depth | DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHz |
Operating speed | DownScan and SideScan: 9 knots (10 mph) |
