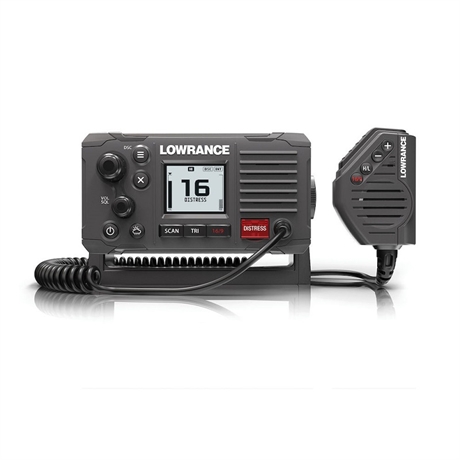

Lowrance VHF Link-6 - 000-13543-001
ersätts av LINK-6S
Overview
Replaces the current Link-5 entry level VHF
NMEA0183
New front mountable mechanical design for easy installation
Available globally in white or grey
Key Selling points
Easy front mount solution
Low profile to style match Lowrance MFD’s, 2 colour options
Clear white dot matrix LCD
Inverted LCD night mode for reduced light emission
Dimmable to 0.5 nits for night operation
Four button fist mic
Full inbuilt country specific channel banks no requirement for programming
NEW FEATURES
Start up wizard
Region & Country selection
Enter MMSI
Call sign
GPS source selection
Time offset
Improved SCAN features
ALL SCAN
ALL CHANNELS + 16
MY CHANNELS
MY CHANNELS + 16
Favourites shortcut
Customizable favourite functions
Defaults
Contrast
Sensitivity
VHF info
Channel name
My Channels
Set Channels as favourite channels
Enter favourite channel mode by long pressing channel dial
Only favourite channels will be included in channel scrolling
Night Mode
Invert the LCD display
Minimizes light emitted for night mode operation
Dimmable to 0.5 NITS
LED’s dim with backlight control
General
| Frequency Range: Transmit | 156.025~157.425 MHz |
| Frequency Range: Receive | 156.050~163.275 MHz |
| Number Of Channels | US / INT |
| Oscillate Mode | PLL |
| Modulation | FM(16KOG3E) DSC(16K0G2B) |
| Channel Spacing | 25KHz |
| Frequency Stability | ±5 PPM |
| Temperature range | -15°C to +55°C (5°F to 131°F) |
| Normal Working Voltage | +13.6 V DC |
| Minimum operating Voltage | 10 V DC |
| Low battery detect Voltage | 10.5 ± 0.5 V DC |
| Digital Selectivity Calling (DSC) | Class D |
RECEIVER
| Intermediate Frequency : 1st | 38.85/21.7 MHz |
| Intermediate Frequency : 2nd | 450 KHz |
| Sensitivity : 12dB SINAD | -6 dBuV(EMF) |
| Squelch Sensitivity: at tight | 6 dBuV(EMF) |
| Spurious Response Rejection Ratio | 70 dB |
| Adjacent Channel Selectivity | 70 dB |
| Intermodulation Response | 68 dB |
| S/N at 3KHz Dev. | 40 dB |
| Audio Output Power At THD 10% | 2.5 W |
| Audio Distortion | 10 % |
| Audio Response | +1 to -3dB of 6dB/octave from 300hz to 3kHz dB |
| Current Drain : Max Audio Power | 1.5 A |
| Current Drain : Stand-By | 0.5 A |
| 2ND RX Sensitivity For 12dB SINAD | 0 dBuV(EMF) |
| 2ND RX bit error ratio@-107dBm | 10-2 |
Transmitter
| Frequency error | ±1.5KHz |
| RF Power | Hi23W ± 2W :Lo 0.8W ± 0.2W |
| Maximum Deviation | ± 5 KHz |
| S/N at 3KHz Dev. | 40 dB |
| Modulation Distortion ±3KHz | 10 % |
| Audio Response at 1KHz Dev. | +1 to -3dB of 6dB/octave from 300hz to 3KHz |
| Spurious/Harmonic Emissions: Hi/LO | 0.25uW |
| Modulation Sensitivity | 15 mV |
| Current Drain At 12V DC | Hi Power 6A: Lo Power 1.5A |
| DSC TX deviation at 1.3K | 2.6±0.26 KHz |
| DSC TX deviation at 2.1K | 4.2±0.42KHz |
| ATIS TX deviation at 1.3 KHz | 1.3±0.13 KHz |
| ATIS TX deviation at 2.1 KHz | 2.1±0.21 KHz |
