Yamaha NMEA 2000 motor interface - 000-0120-37

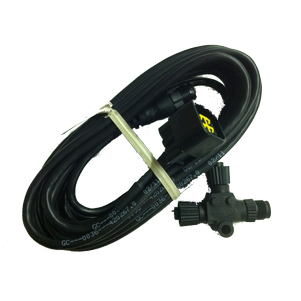

Yamaha motor interface mellan motor och NMEA 2000 nätverk för att kunna visa motordata. Levereras med 4.5 m kabel och t-stycke
Behöver kompletteras med ett NMEA 2000 startkit om det inte redan finns ett nätverk.
_________________________________________________________________________________
Connects to Yamaha engines without Yamaha CommandLink Plus system.
2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
Outputs:
Yamaha 4-stroke 50-250| 2-stroke HDPI 150-350|
RPM Yes| Yes
Alternator Voltage Yes| Yes
Engine Hours Yes| Yes
Engine Temperature Yes| Yes
Fuel Pressure Yes| Yes
Fuel Rate Yes| Yes
Oil Pressure Yes| Yes
Trim * Yes| Yes
Water Pressure Yes| Yes
*Digital trim must be connected by a Yamaha dealer.
*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
